High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating

High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating
High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating
High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating
Informação Básica
Lugar de origem: China
Marca: Coarrech
Certificação: ISO9001、CE
Número do modelo: CT-ZT-7
Quantidade de ordem mínima: 1 unidade
Preço: 1000-100000 USD
Detalhes da embalagem: Com filme e caixa regulares
Tempo de entrega: 20 dias após o depósito
Termos de pagamento: T/T
Habilidade da fonte: 20set/mês
contacto
Aplicação: produtos metálicos Método de controle: LC + Ecrã de Toque
Tipo de máquina: Cabine de pulverização, sistema de transportador, forno de curagem Serviço pós-venda: Apoio em linha/ Instalação, comissionamento e formação em campo
Tipo: Linha de revestimento automática de pintura a vapor processo de pintura por pulverização: Pintura automática por pulverização
Adequado para: Fabricação em que o valor de todas as matérias utilizadas não exceda 50% do preço franco fábrica
Destacar:

automatic chain-on-edge spindle conveyor

,

high-speed small parts painting system

,

rotational coating conveyor with warranty

High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating​



Overview:

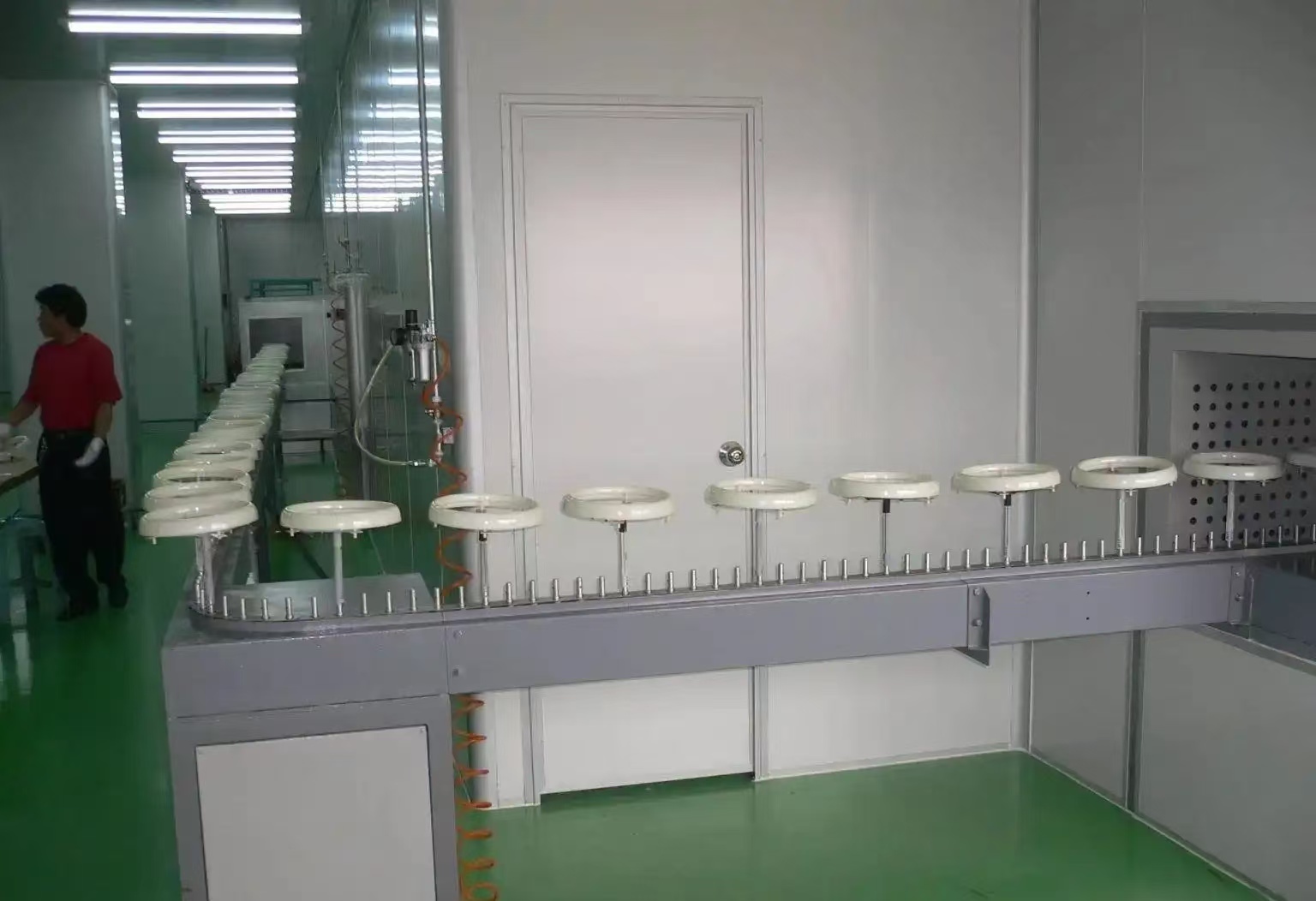

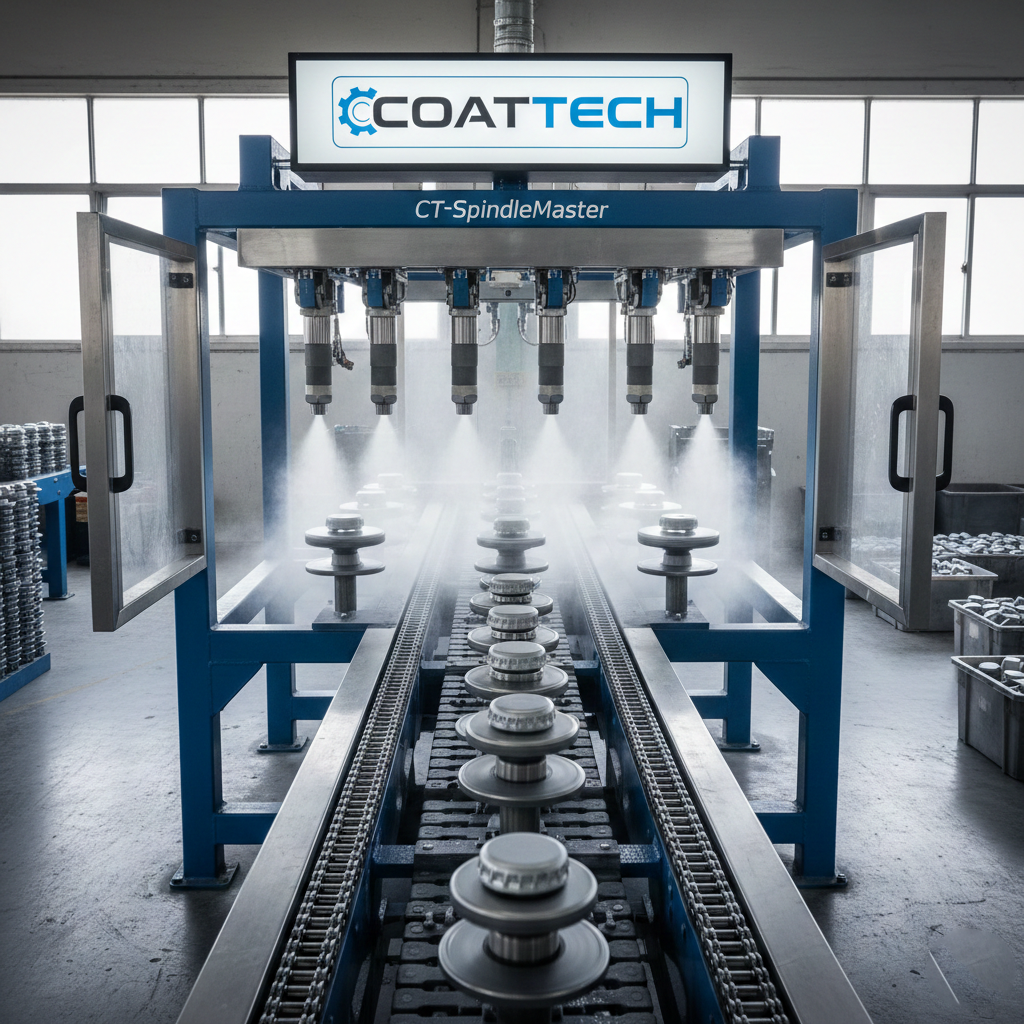

Designed for mass production of small, symmetrical items like bottle caps, cosmetic containers, or automotive knobs. The CT-SpindleMaster moves parts on individual spindles mounted on a floor-level chain. The spindles rotate rapidly in front of automatic spray guns, ensuring perfectly even coverage on cylindrical items.



Technical Specifications:



Feature Specification
Conveyor Style Floor-mounted Chain-on-Edge (Spindle)
Part Rotation Variable speed rotation in spray zone
Spindle Spacing Customizable (e.g., 50mm to 300mm pitch)
Line Speed High speed (up to 10 m/min)
Application Automatic electrostatic guns (fixed or reciprocating)
Ideal Parts Parts under 20cm diameter requiring 360° coating
Stage Function Key Technologies
1. Loading & Pre-treatment Automated part identification, dust/static removal RFID tracking · Ionized air cleaning
2. Pre-treatment Degreasing/Phosphating/Rinsing/Drying (enhance adhesion) Closed-loop chemical control · Tunnel spray/immersion
3. Automated Spraying Robotic precision coating (primer/color/clear) 6-axis robots · Electrostatic rotary bell (30%+ paint savings) · Smart color change (≤10 sec)
4. Flash-off Solvent evaporation (prevent blistering) ±1°C temp/humidity control
5. Curing High-temperature film curing (80-180°C) Multi-zone IR/convection ovens · Waste heat recovery (20%+ energy saving)
6. Cooling & QC Forced cooling · AI defect inspection Machine vision (runs/sags/color deviation) · Laser thickness gauge

III. Smart Core Technology

IV. Key Performance Advantages

Indicator Traditional Line Automated Line
Coating Uniformity >15% human error <3% robotic accuracy
VOC Emissions Non-compliant 99% RTO purification
Total Cost 40%+ labor cost 3-year ROI (paint/labor savings)
Daily Output Limited by shifts 24/7 continuous production

V. Industry Applications

VI. Implementation Requirements

VII. Industry Trends

Key Translation Notes:

  1. Terminology Alignment

    • Flash-off (SAE J1545 standard)

    • Phosphating (ASTM B201 process)

    • Electrostatic Rotary Bell (Gema equipment terminology)

  2. Technical Conventions

    • Temperature ranges use 80-180°C (not "℃")

    • Measurements: ±1°C (not "±1℃")

  3. Regulatory Compliance

    • VOC treatment: RTO (Regenerative Thermal Oxidizer) - EPA Method 25A

    • Salt spray test: 1000h+ per ASTM B117

  4. Industry-Specific Phrasing

    • Distressed Effects (furniture industry term)

    • Cleanroom-grade (SEMI F1 standard)

    • High-Speed Automatic "Chain-on-Edge" Spindle Conveyor System for Small Parts Painting and Rotational Coating 0
